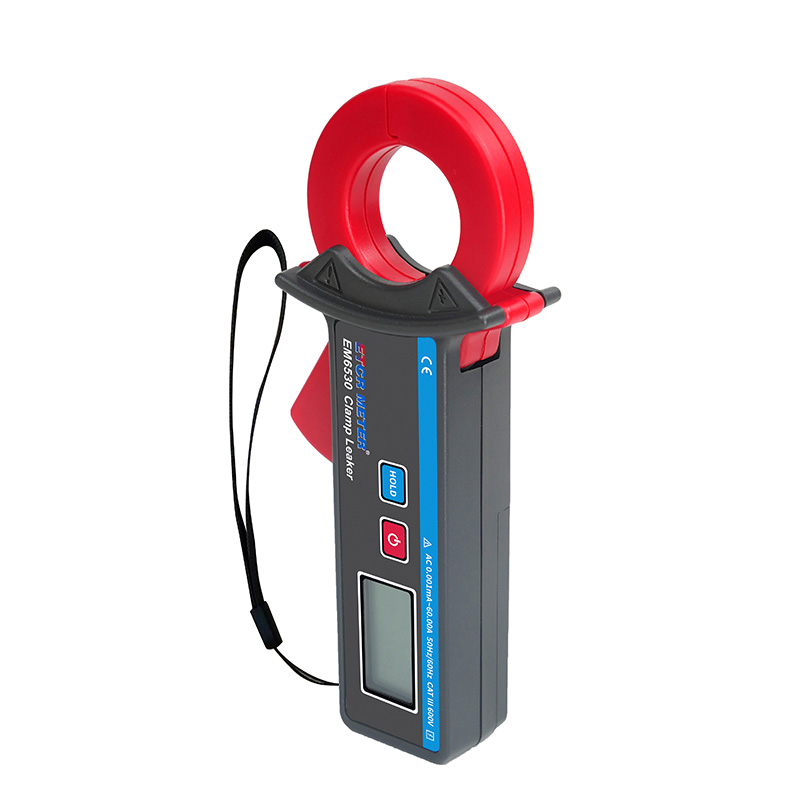

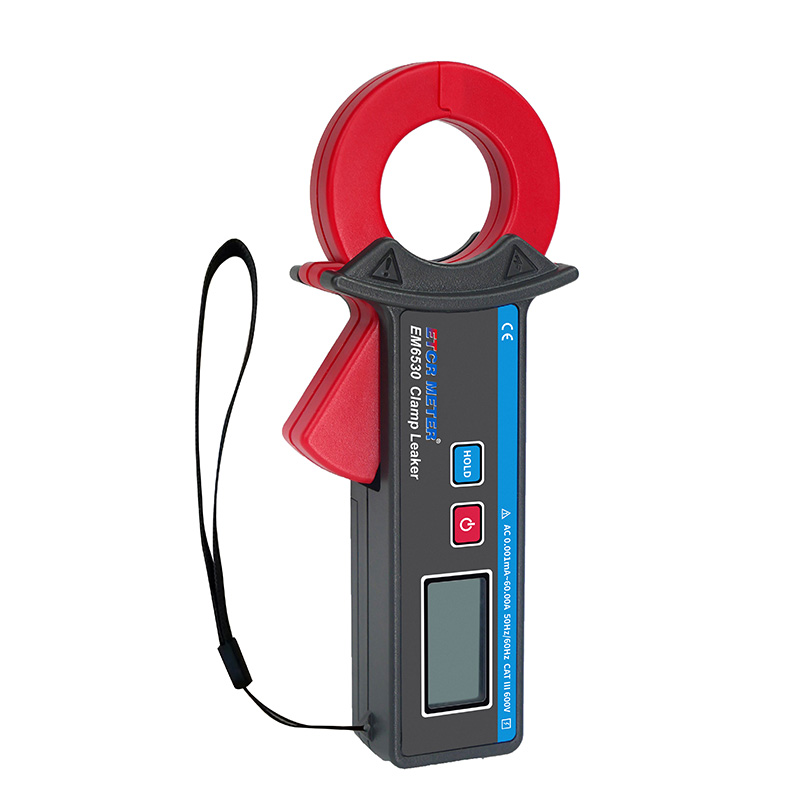

    EM6530 Mini Clamp Leakage Current Meter
  • Product Series : High Accuracy Clamp Leakage Current Meter

    • Main Features

      Measurement of AC leakage current, AC current
      Current Range: AC 0.000mA ~ 60.0A
      Jaw Size: Φ30mm
      Data Storage: 99 groups
      Peak Hold Function

    Product Introduction

    EM6530 Mini Clamp Leakage Current Meter is also called clamp leakage current tester and high-precision clamp current meter, which is used for AC leakage current and AC current measuremen.The clamp meter sensor core adopts slope film alloy and double-layer shielding technology, which is almost unaffected by external electromagnetic fields, ensuring high precision, high stability and high reliability of uninterrupted measurement all year round. It is widely used in power, communication, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields.EM6530 Mini Clamp Leakage Current Meter has peak hold, data hold, data storage and other functions.
    ETCRMETER is a high-end brand of ETCR. All products are manufactured by ETCR, which also provides technical support and after-sales service.


    Product Features
    1. The clamp meter is small in size and easy to carry. It is an essential tool for electrical safety detection.
    2. Double-layer shielding technology, high precision, strong anti-interference ability, and resolution of 1uA.
    3. Peak hold function.
    4. Data storage function.

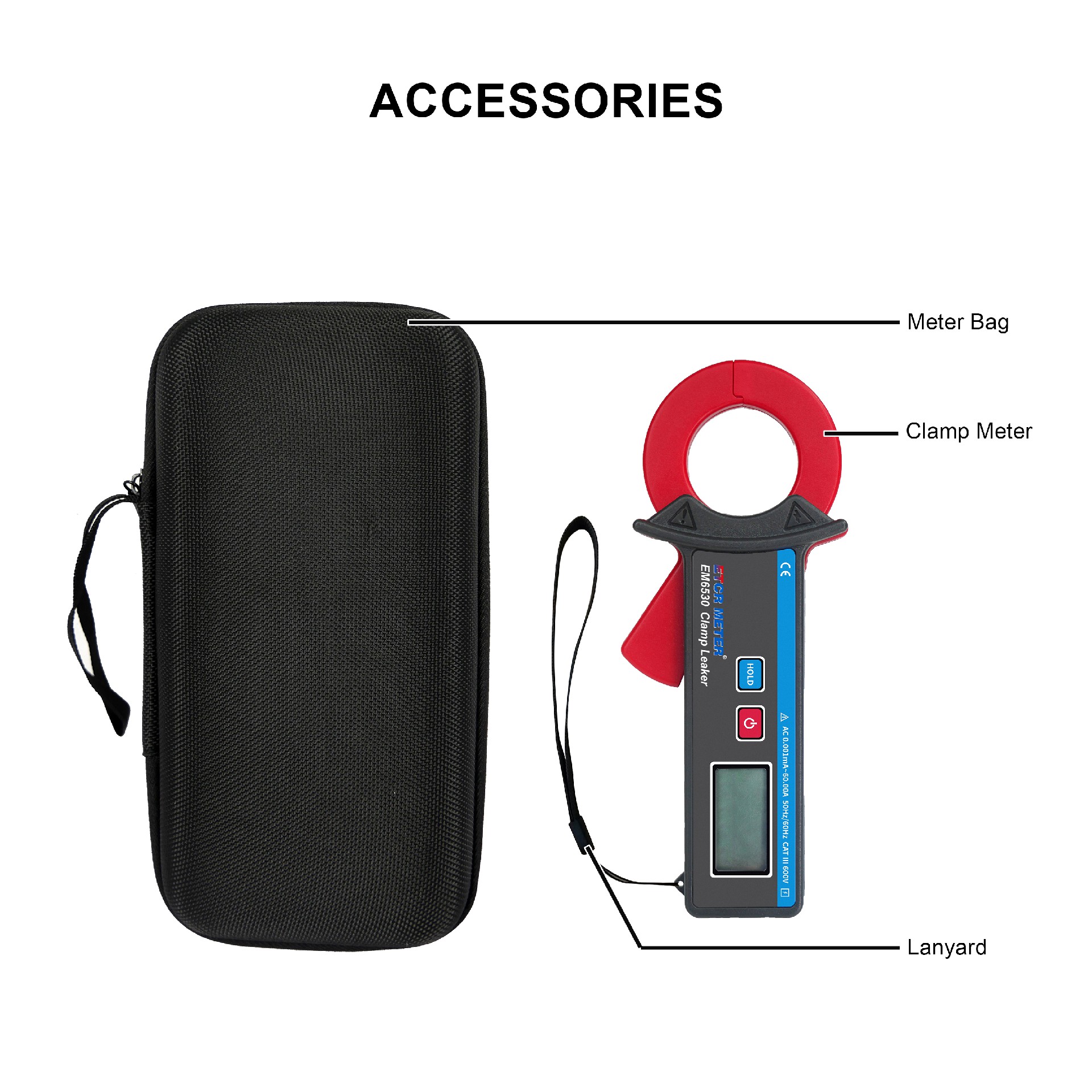

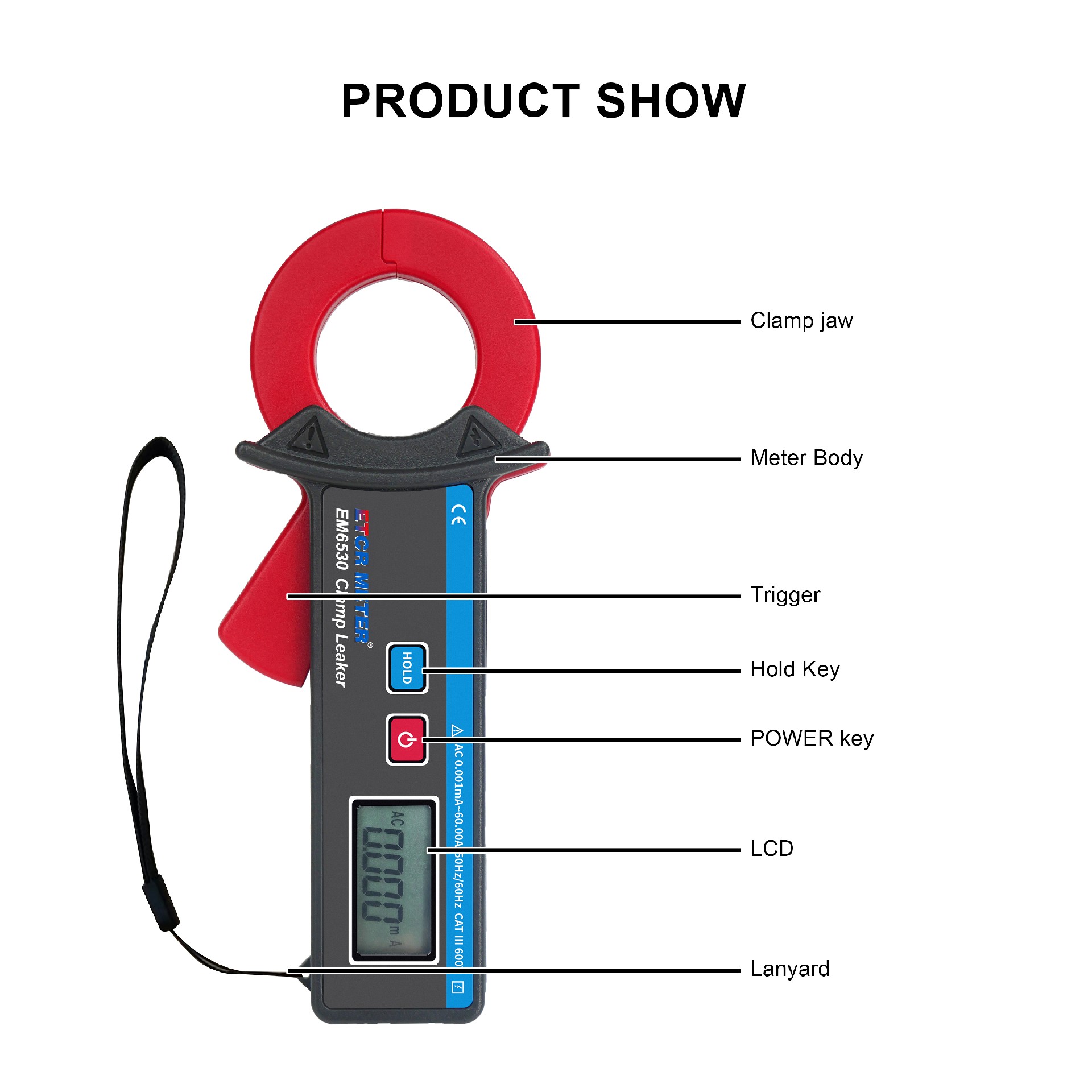

    EM6530 (7).jpg EM6530 (8).jpg

    Technical Parameters

    Specification NameParameters Description
    Power SupplyAlkaline dry battery 7# 2pcs
    Display Mode4-digit LCD display
    LCD Size35mm × 21.5mm; display area: 32mm × 15mm
    Range0.000mA~60.0A
    Resolution1uA
    Measurement Accuracy± 1.5%rdg ± 5dgt
    Jaw SizeΦ30mm
    Test MethodClamp CT, integration method
    Sampling RateApprox. 2 times/second
    Frequency50Hz, 60Hz automatic recognition
    ShiftingFully automatic switching
    Line VoltageLine test below AC600V
    Data Storage99 groups, flashing "FULL" symbol indicates that the storage is full
    Peak HoldPeak capture hold function, long press HOLD during the test to display the peak value
    Data HoldData hold function: "HOLD" symbol display
    Overflow DisplayOver range overflow function: "OL" symbol display
    Auto Shutdown5 Minutes after power on, will shut down automatically without any operation to reduce the power consumption.
    Battery VoltageWhen the battery voltage drops to approx. 2.8V, the low battery voltage symbol is displayed to remind you to replace the battery.
    Working Current5mA
    Insulation StrengthAC 2kV/rms (between the core and the box)
    Working Temperature & Humidity0℃~40℃; below 80%RH
    Storage Temperature & Humidity-10℃~60℃; below 70%RH
    Instrument Size180mm × 72mm × 32mm
    Instrument Weight

    Instrument: approx. 200g (including battery);
    Total weight: approx. 0.32kg (including accessories)

    Safety StandardsIEC1010-1, IEC1010-2-032, pollution level 2, CAT Ⅲ (600V)

    Model Comparison

    Product PictureModelCurrent RangeJaw SizeHarmonic AnalysisStorage Function
    EM6530 (1)(1).jpgEM6530AC 0.000mA~60.0AΦ30mm——99 groups

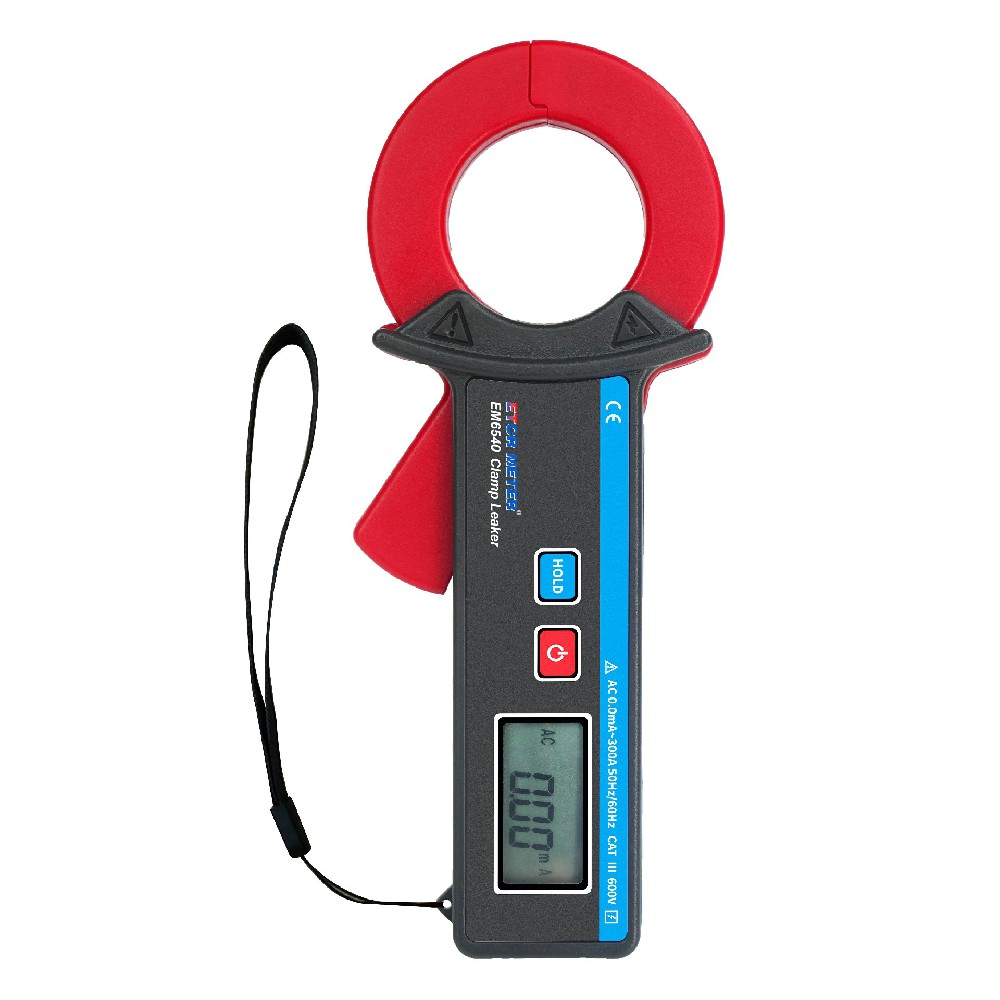

    EM6540 (1)(1)(1).pngEM6540AC 0.00mA~300.0AΦ40mm——99 groups

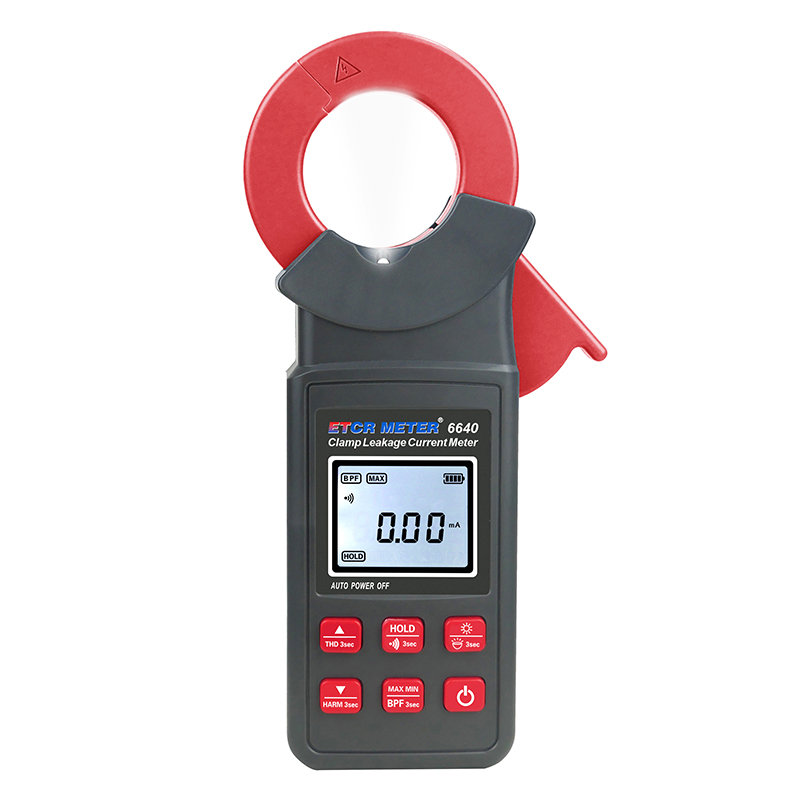

    EM6640 (1).jpgEM6640AC 0.00mA~300.0AΦ40mm21 times2000 groups
    EM6670 (1)(1)(1).pngEM6670AC 0.00mA~1200AΦ70mm21 times2000 groups

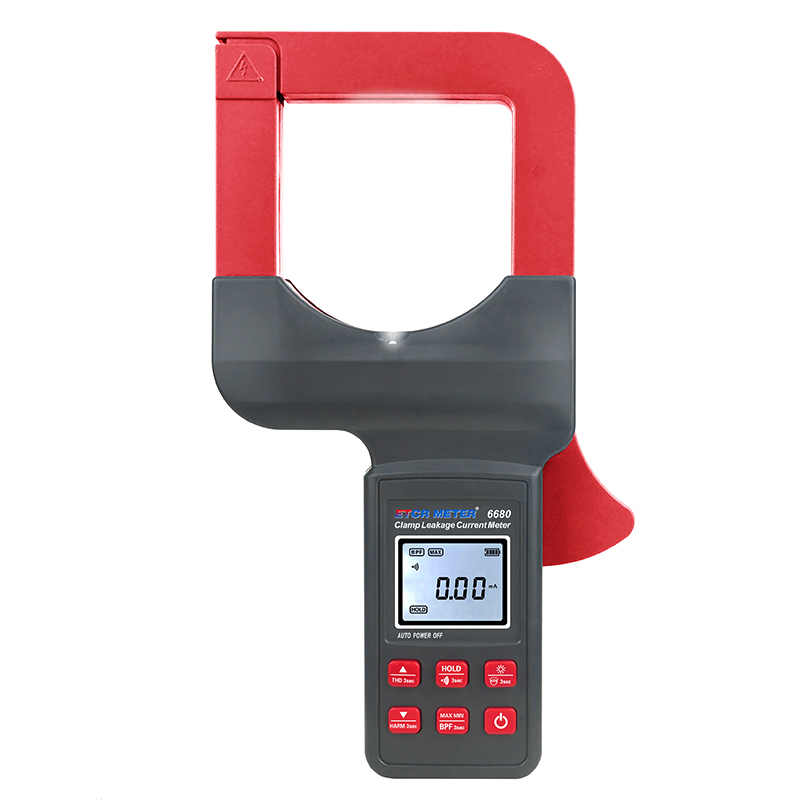

    EM6680 (1).jpgEM6680AC 0.00mA~2000A80mm×80mm21 times2000 groups

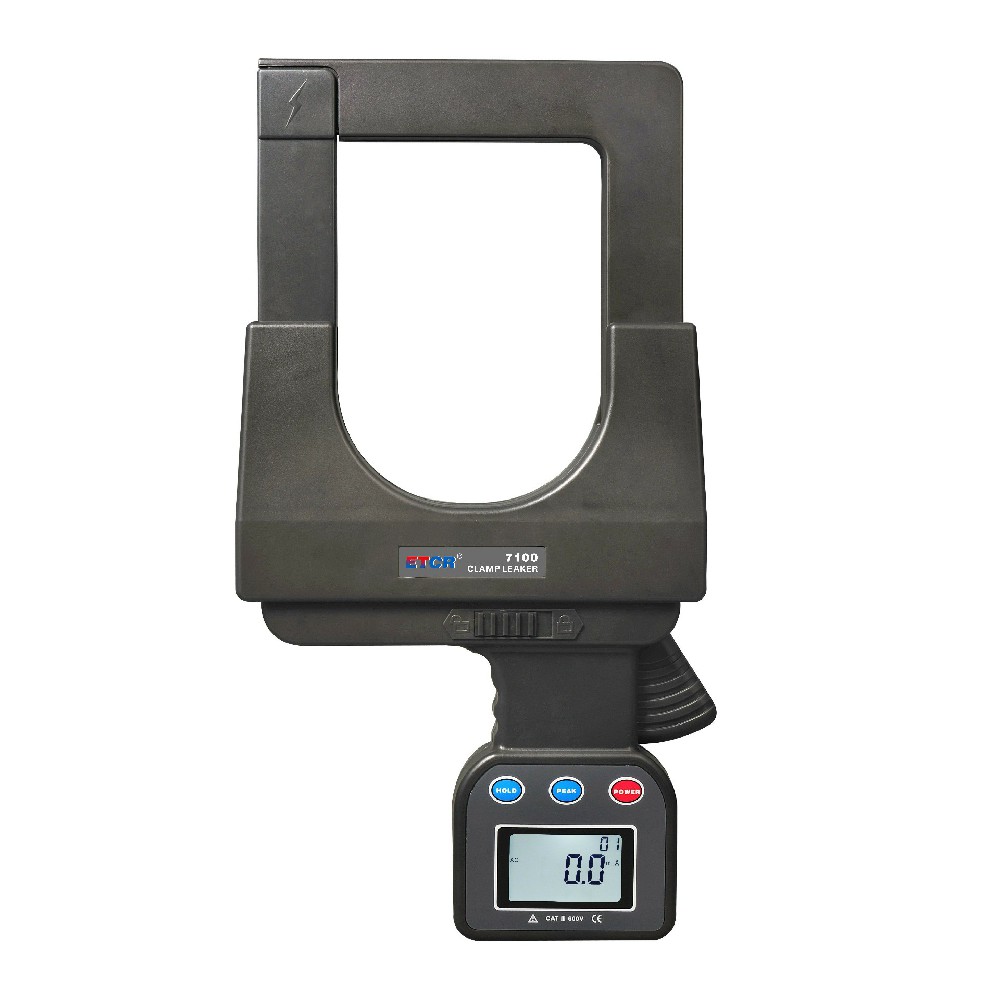

    EM7100 (1)(1)(1)(1).pngEM7100AC 0.0mA~3200A108mm×148mm——99 groups
    EM7100A (1)(1)(1).jpgEM7100AAC 0.0A~4000A108mm×148mm——99 groups
