    EM5960 Digital Multimeter
  • Product Series : Digital Multimeter

    • Main Features

      Used for measurement of DC voltage and current, AC true effective value(TRMS) voltage and current, resistance, capacitance, forward voltage drop of diode, circuit continuity on/off ,etc.
      Voltage Measurement Range: DC 0.0mV ~ 2000V; AC 0.0mV ~ 2000V
      Current Measurement Range: DC 0.0uA ~ 200mA; AC 0uA ~ 200mA
      Resistance Measurement Range: 0.0Ω ~ 200MΩ
      Capacitance Measurement Range: 0pF ~ 2000uF

    Product Introduction

    EM5960 Digital Multimeter also known as smart multimeter, which is a stable and battery-powered digital multimeter with high reliability. The multimeter is managed by single chip microcomputer and has full function of overload protection. The meter can show the position of each pen and socket, and remind you not to insert the wrong position. The instrument can measure DC voltage and current, AC true RMS voltage and current, resistance, capacitance, diode forward voltage drop, circuit continuity, etc. Accurate measurement, stable performance, safe and reliable, is your ideal test and repair tool.
    ETCRMETER is a high-end brand of ETCR. All products are manufactured by ETCR, which also provides technical support and after-sales service.


    Product Features
    1. Adopt with single-chip microcomputer management, all functions have overload protection.
    2. Equipped with backlight, which is convenient for the user to read the measured value in dark place.
    3. With automatic shutdown, data hold and other functions.

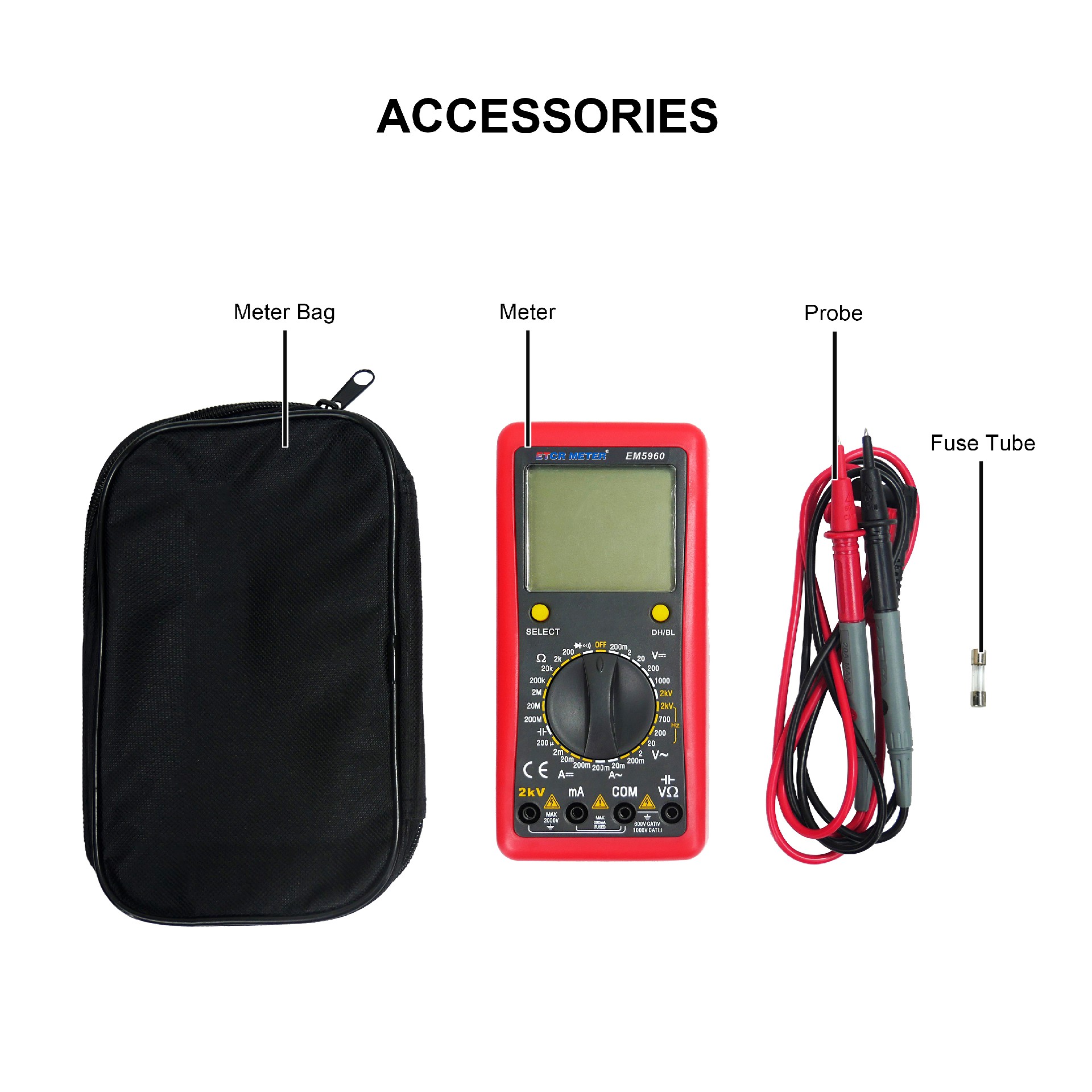

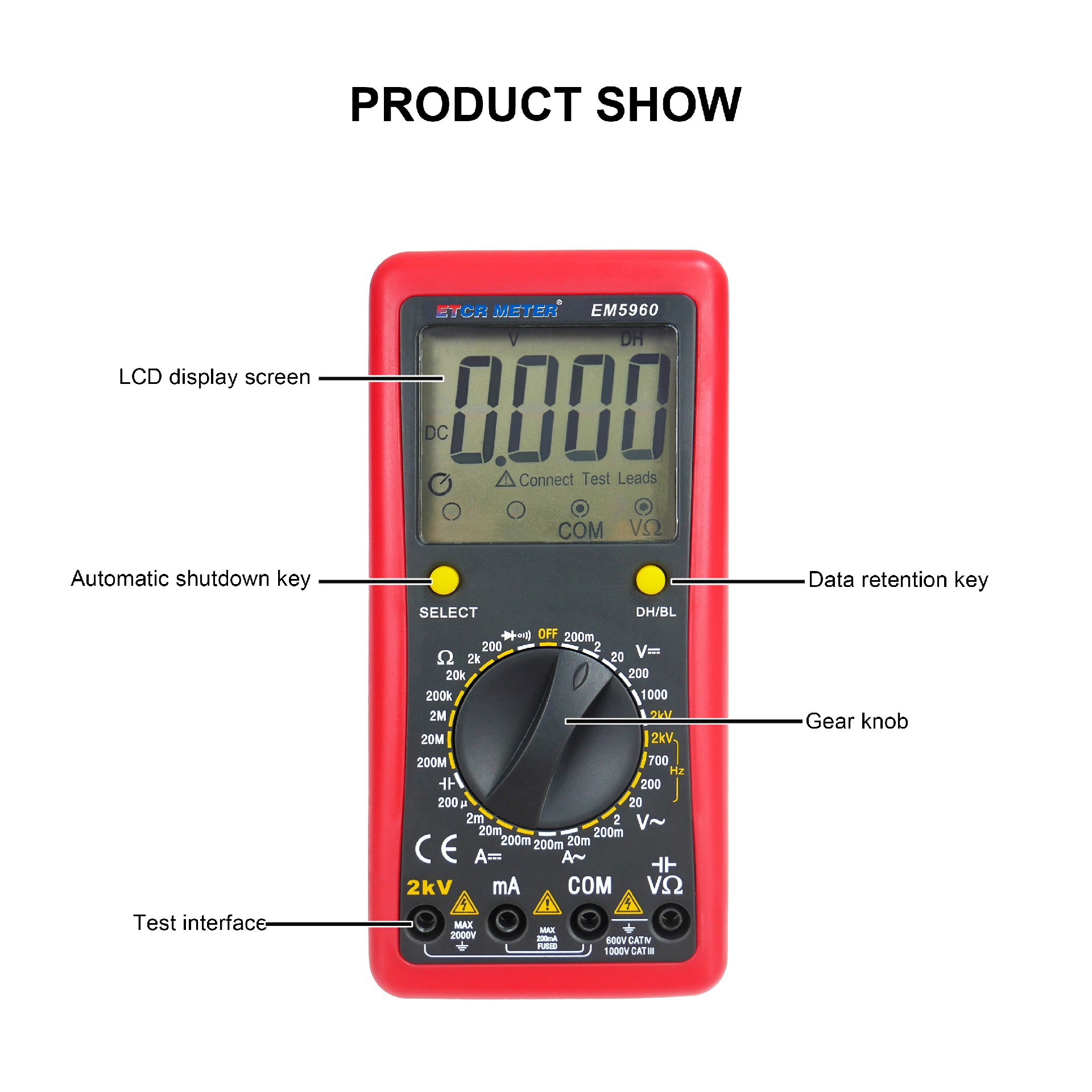

    EM5960-PRODUCT SHOW.jpg EM5960-ACCESSORIES.jpg

    Technical Parameters

    Specification NameParameters Description
    Power Supply9V DC 6F22*1PC alkaline dry battery
    LCD Size60mm x 50mm; Max display: 1999
    Voltage MeasurementRange: DC 0.0mV~2000VMax. Resolution: 0.1mVMax. Accuracy: ±(0.5%+5)
    Range: AC 0mV~2000VMax. Resolution: 0.1mVMax. Accuracy: ±(0.8%+5)
    Current MeasurementRange: DC 0.0uA~200mAMax. Resolution: 0.1uAMax. Accuracy: ±(0.8%+5)
    Range: AC 0.0uA~200mAMax. Resolution: 10uAMax. Accuracy: ±(1%+5)
    Resistance MeasurementRange: 0.0Ω~200MΩMax. Resolution: 0.1ΩMax. Accuracy: ±(1%+5)
    Capacitance MeasurementRange: 0pF~2000uFMax. Resolution:10pFMax. Accuracy: ±(3%+10)
    Frequency Measurement40Hz~1kHz
    Sampling Rate2.5 times
    BacklightYes
    Data HoldYes
    Continuity MeasurementYes
    Automatic ShutdownAutomatic shutdown after starting up 15 minutes without any operation
    Overflow DisplayOver range overflow function: “OL” symbol display
    Overload ProtectionYes
    Input Impedance10MΩ
    Battery VoltageWhen low battery power symbol indicate, remind to replace the battery.
    Line VoltageCircuit test below AC 600V
    Working Temperature0℃ ~ 40℃  RH < 75 %
    Store Temperature- 10℃ ~ 50℃ RH < 80 %
    Meter WeightApprox. 680g(include accessories)
    Meter Dimension180mm x 85mm x 42mm

    Model Comparison

    Product ModelVoltage RangeCurrent RangeResistance Range

    Capacitance Range

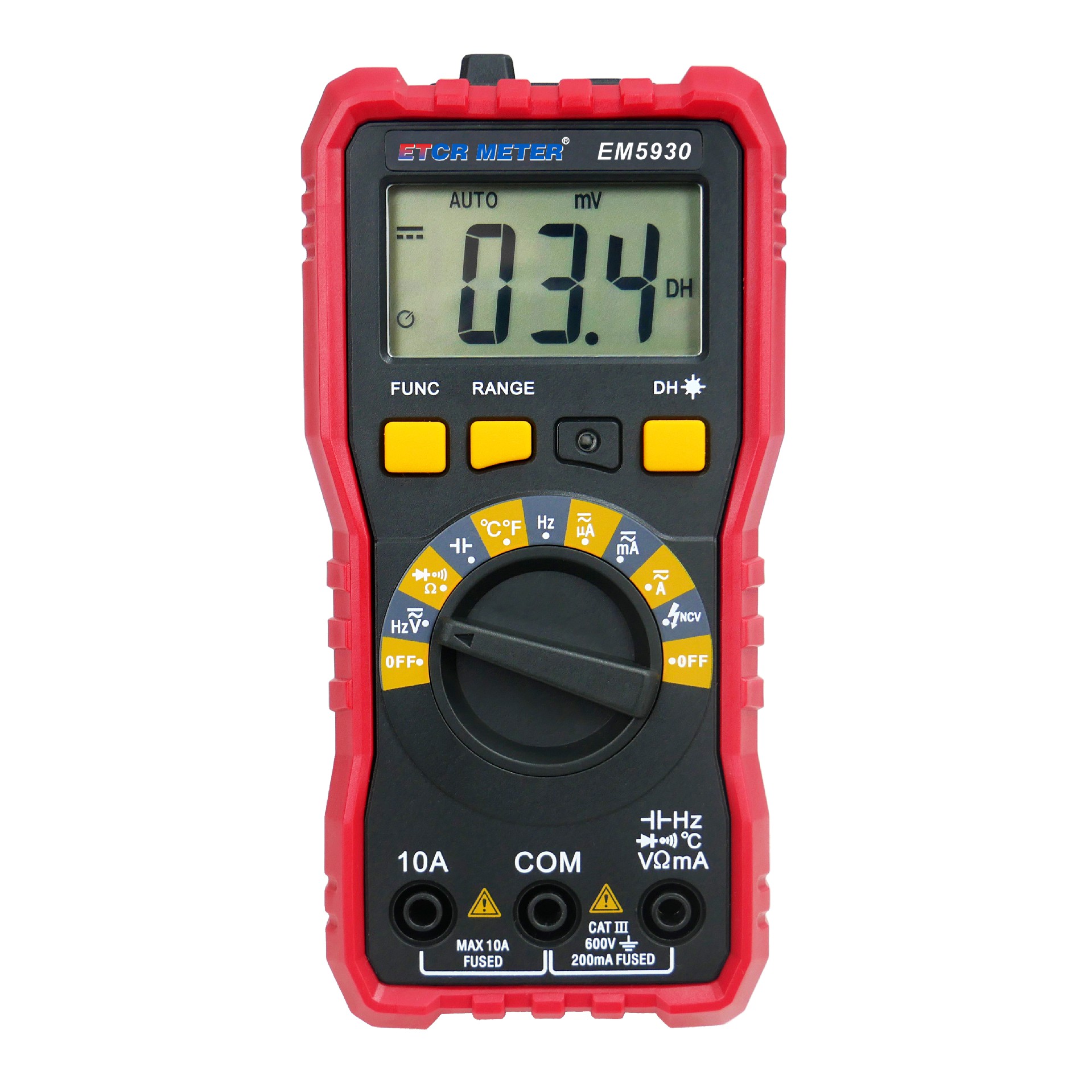

    EM5930 (1).jpg
    EM5930

    DC 0.0mV~600V

    AC 0mV~600V

    DC 0.0uA~10A

    AC 0.0uA~200mA

    0.0Ω~20MΩ0.0nF~2mF

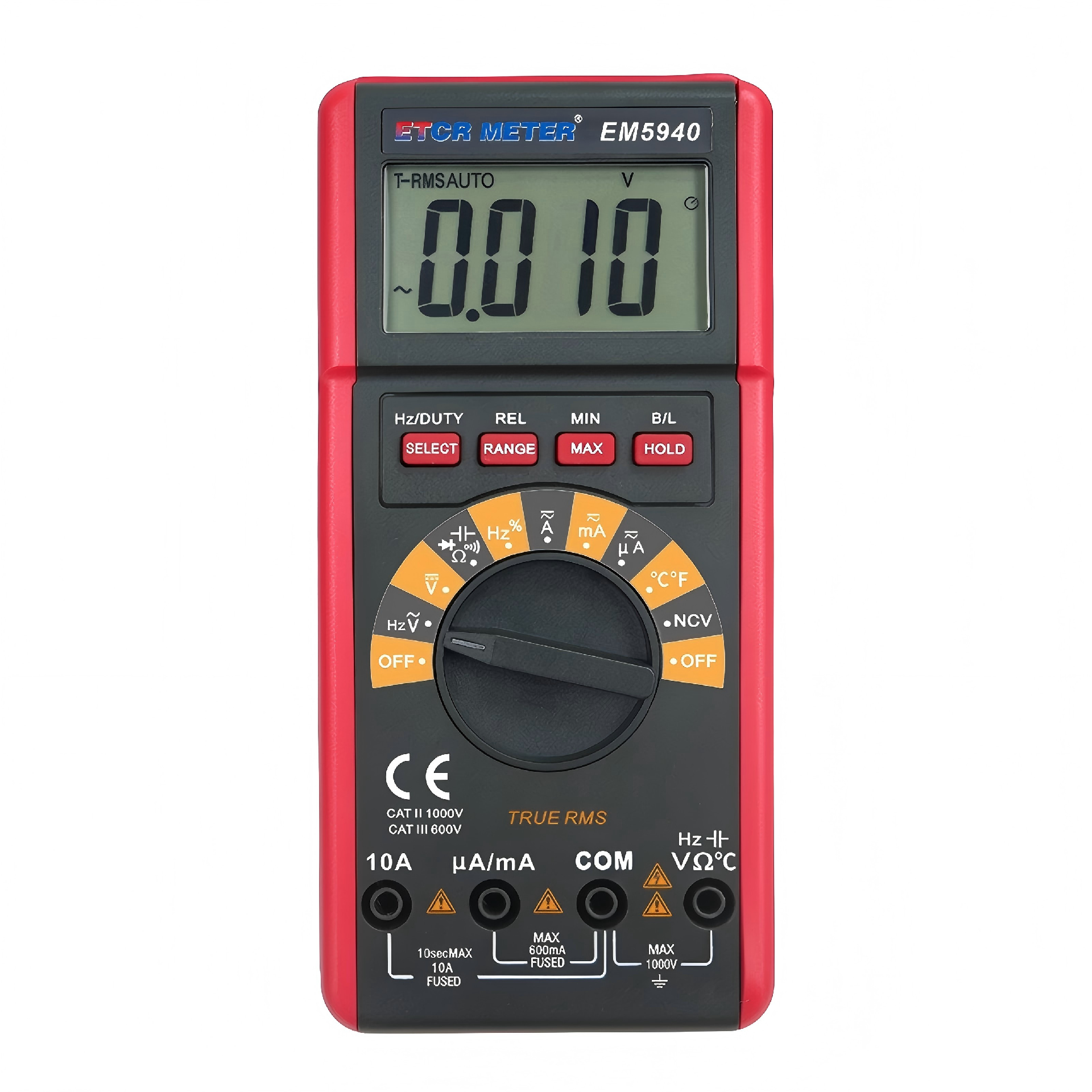

    EM5940 (1)(1).png
    EM5940

    DC 0mV~1000V

    AC 0mV~1000V

    DC 0.0uA~10A

    AC 0.0uA~10A

    0.0Ω~60MΩ0.0nF~9.999mF

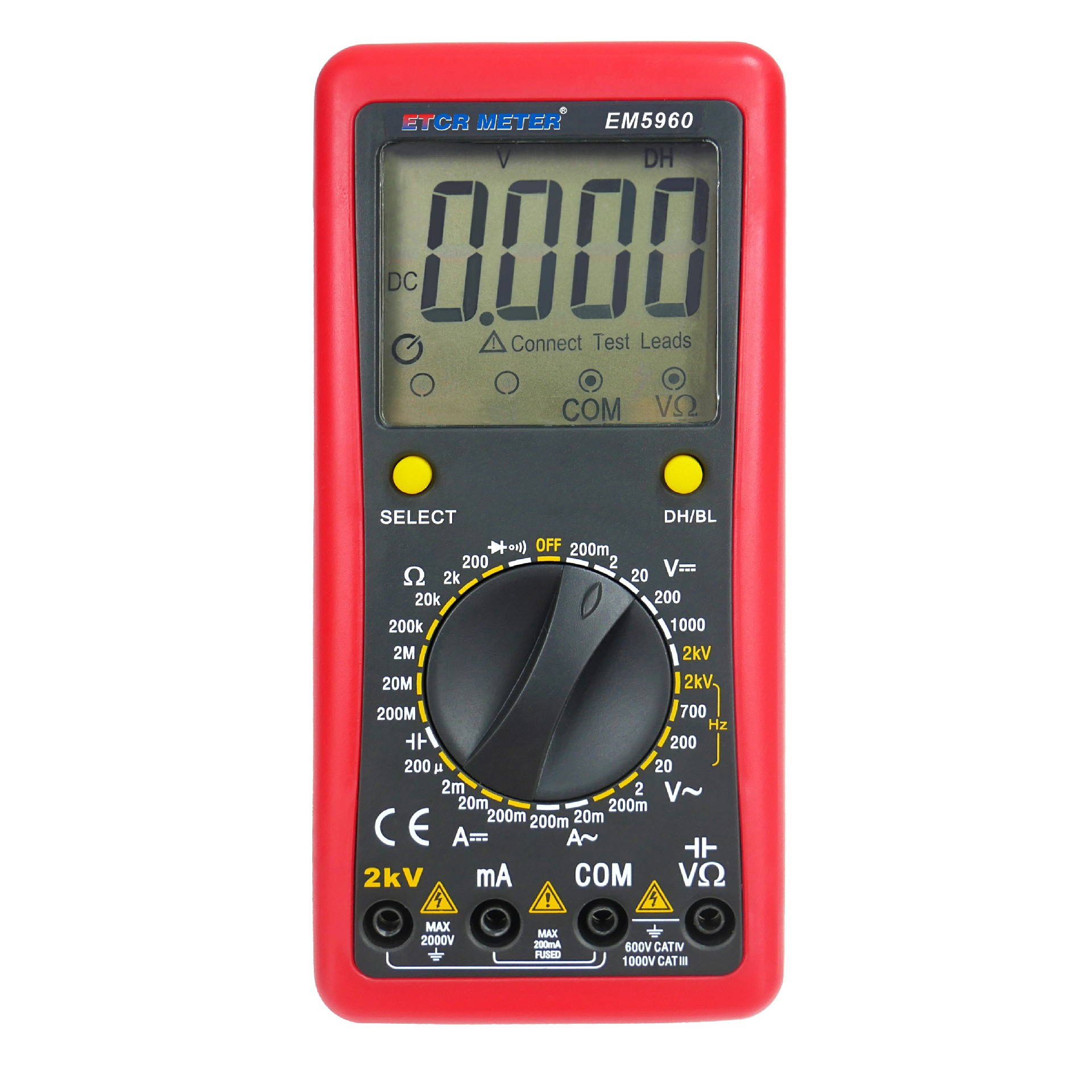

    EM5960 (1).jpg
    EM5960

    DC 0.0mV~2000V

    AC 0.0mV~2000V

    DC 0.0uA~200mA

    AC 0uA~200mA

    0.0Ω~200MΩ0pF~2000uF

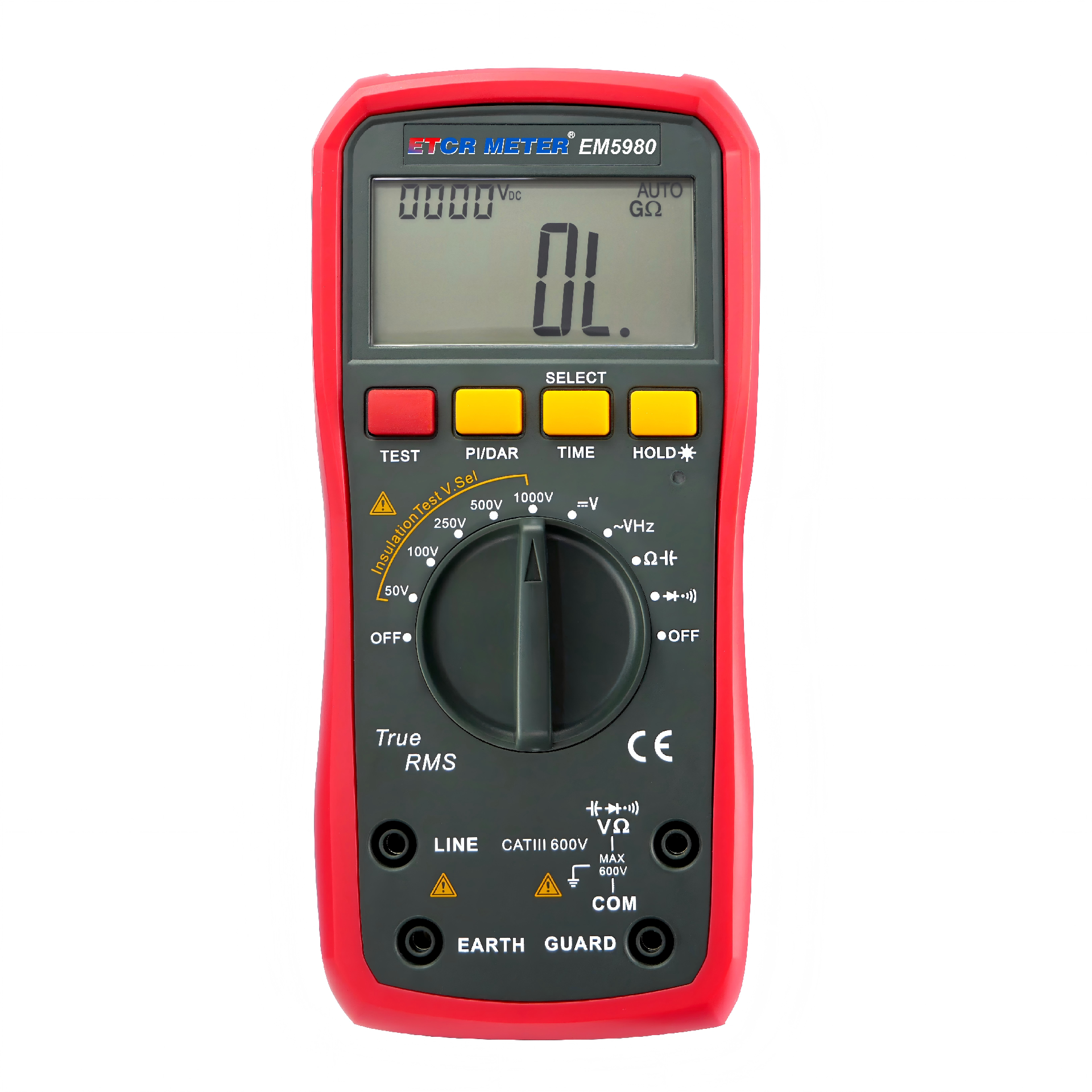

    EM5980 (1)(1).png
    EM5980

    AC:0V~600V

    DC:0V~600V

    ——600Ω~60MΩ10nF~100mF
